PaperDialogDSL

Paper Dialog DSL

我实在是受够 .build() 了，因此产生了这个项目

Paper Dialog DSL 是一个专为 Paper 1.21.10+ 对话框 API (Dialog API) 打造的 Kotlin 声明式 UI 框架。它彻底消灭了繁琐的 Java Builder 嵌套、生命周期样板代码和危险的组件覆盖问题，带给你极其丝滑、类型安全的 UI 编写体验。

查看项目源码及 test 包中的示范用法获取更多帮助，直接拉到本地研究也可以，我不太喜欢写README，嗯

对比

在原生 Paper API 中写一个带有输入框的对话框，你得这么写：

原生写法：

val oldDialog = Dialog.create { dialogBuilder ->
    dialogBuilder.empty()
        .base(
            DialogBase.builder(mm.deserialize("Title"))
                .canCloseWithEscape(true)
                .inputs(
                    listOf(
                        DialogInput.numberRange(
                            "test2",
                            mm.deserialize("<aqua>输入数字"),
                            0f,
                            100f
                        )
                            .initial(0f)
                            .build(),
                        DialogInput.bool(
                            "test",
                            mm.deserialize("勾选<sprite:blocks:block/stone>")
                        ).build(),

                        DialogInput.text(
                            "test3",
                            mm.deserialize("<sprite:\"minecraft:items\":item/porkchop>请输入文本")
                        ).build()
                    )
                )
                .build()
        )
        .type(
            DialogType.notice(
                ActionButton.create(
                    mm.deserialize("1 right"),
                    mm.deserialize("2 right"),
                    100,
                    DialogAction.customClick(
                        { view, audience ->
                            val test2 = view.getFloat("test2") ?: return@customClick
                            audience.sendMessage(mm.deserialize("test2: $test2"))
                        },
                        ClickCallback.Options.builder()
                            .uses(-1)
                            .lifetime(Duration.ofMinutes(5))
                            .build()
                    )
                )
            )
        )
}

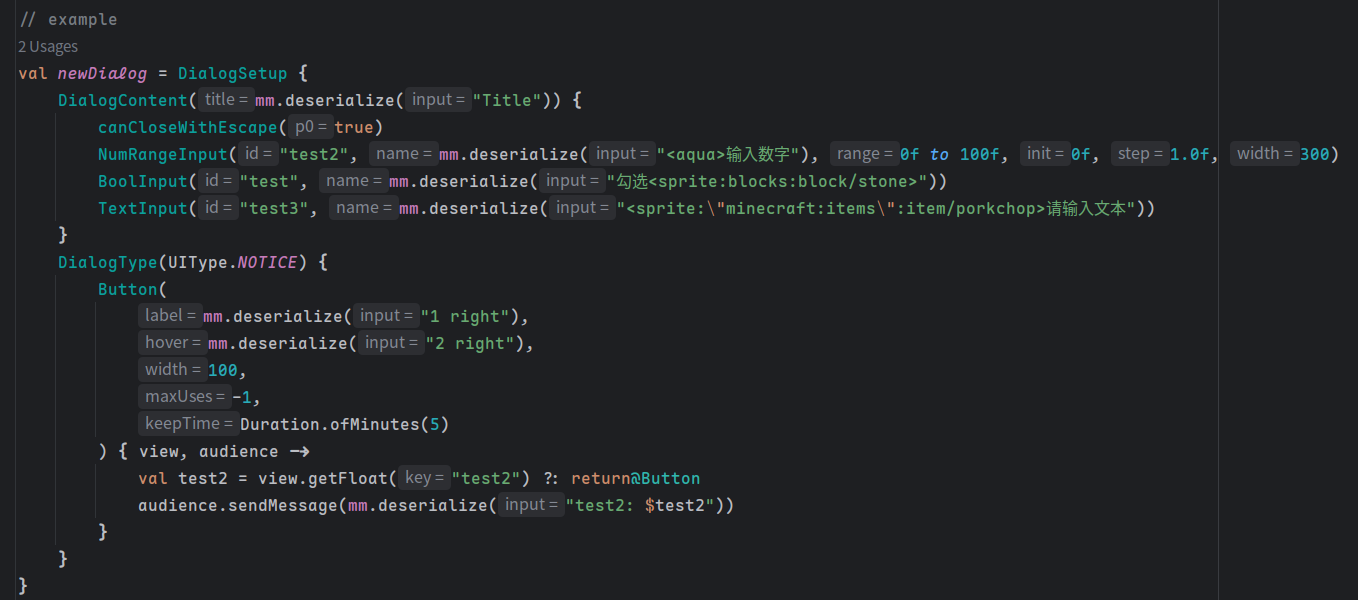

使用这个DSL的写法：

val newDialog = DialogSetup {
    DialogContent(mm.deserialize("Title")) {
        canCloseWithEscape(true)
        NumRangeInput("test2", mm.deserialize("<aqua>输入数字"), 0f to 100f, 0f, 1.0f, 300)
        BoolInput("test", mm.deserialize("勾选<sprite:blocks:block/stone>"))
        TextInput("test3", mm.deserialize("<sprite:\"minecraft:items\":item/porkchop>请输入文本"))
    }
    DialogType(UIType.NOTICE) {
        Button(
            mm.deserialize("1 right"),
            mm.deserialize("2 right"),
            100,
            -1,
            Duration.ofMinutes(5)
        ) { view, audience ->
            val test2 = view.getFloat("test2") ?: return@Button
            audience.sendMessage(mm.deserialize("test2: $test2"))
        }
    }
}

导入

build.gradle.kts：

repositories {
    mavenCentral()
    maven { url = uri("https://jitpack.io") }
}

dependencies {
    implementation("com.github.Axiumyuyu:PaperDialogDSL:Tag")
}

快速开始

1. 创建主UI

使用 DialogSetup { ... } 块来声明一个静态的注册表对话框。框架将 UI 划分为两个区域：DialogContent (展示与输入区) 和 DialogType (底部按钮路由区)。

val MainMenuUI = DialogSetup {

    // 【上半区：展示与输入】
    DialogContent(text("服务器主菜单")) {
        // 直接调用原生方法 (Escape Hatch)
        canCloseWithEscape(true)

        // 渲染文本与物品
        Text(text("欢迎来到服务器！请填写或选择以下操作："))
        ItemDisplay(ItemType.DIAMOND.createItemStack())

        // 渲染交互输入组件 (自动堆叠在展示内容下方)
        TextInput("player_name", text("你的昵称"))
        BoolInput("agree_rules", text("同意服务器规则"))
        NumRangeInput("age", text("你的年龄"), 1f to 100f)
    }

    // 【下半区：操作路由】
    DialogType(UIType.MULTI_ACTION, columns = 2) {
        // 独立的退出按钮
        ExitButton(text("关闭"), text("点击退出"), 100)

        // 常规回调按钮
        Button(text("提交"), text("保存数据"), 100) { view, audience ->
            val name = view.getText("player_name")
            val agree = view.getBoolean("agree_rules")
            audience.sendMessage(text("收到提交：$name, 同意规则：$agree"))
        }
    }
}

2. 注册

在你的 PluginBootstrap 中，使用提供的 registerDialog 扩展函数，将繁琐的 5 层泛型参数压缩为一行代码：

class MyPluginBootstrap : PluginBootstrap {
    override fun bootstrap(context: BootstrapContext) {
        val manager = context.lifecycleManager
        manager.registerDialog(NamespacedKey("playertd","test"), newDialog)
    }
}

3. 动态对话框

由于Paper 的bug（Issue #13555）,目前无法在 Bootstrap 阶段使用 ItemDisplay ，如果必须使用，则不能在Bootstrap阶段注册，只能使用动态对话框。

// 在命令执行器或事件监听器中：
val dynamicUI = MainMenuUI.build()

player.showDialog(dynamicUI)

支持的对话框类型

DSL 支持所有 Paper 原生的对话框布局：

• UIType.NOTICE: 纯展示，允许 0 或 1 个按钮。
• UIType.CONFIRMATION: 二选一，严格要求必须定义 2 个按钮。
• UIType.MULTI_ACTION: 支持无限按钮，支持 columns 参数实现网格排版。
• UIType.DIALOG_LIST: 传入 RegistrySet<Dialog> 展示多个子对话框列表。
• UIType.SERVER_LINKS: 展示服务器配置的外部链接。

路由系统 (Route)

为多页面对话框场景提供导航栈管理与生命周期安全的声明式路由方案。

核心接口

快速使用

// 命令/事件中打开根菜单
DialogRouter.openRoot(player, MainMenu)

// 页面内导航
context.navigate(SomeRoute)           // 压栈跳转
context.replace(state.copy(x = v))    // 替换当前页（更新状态重绘）
context.goBack()                      // 返回上一页
context.abortTransaction()            // 中断事务（自动调用 onRollback）

使用 AutoRootSetup 快速创建主菜单：

object MainMenu : RootRoute {
    override fun render(context: DialogRouteContext) =
        AutoRootSetup(context, mm.deserialize("主菜单")) {
            "实体列表" to ListRoute
            "编辑" to EditRoute("uuid-1234", "Pig")
            "设置" to SettingsRoute()
        }
}

生命周期保护

RouteCleanUp 自动监听玩家掉线/死亡事件。若当前页面为 AtomicRoute，自动触发 onRollback 回滚并清理路由栈，防止事务泄露。

完整示例参考 src/main/.../test/RouteTest.kt 和 RouteTest2.kt。

License

This project is licensed under the MIT License.

I am not a native English Speaker, translated by ai, sorry for the possible mistakes.

Paper Dialog DSL

I'm really fed up with .build(), so this project was born

Paper Dialog DSL is a Kotlin declarative UI framework built specifically for Paper 1.21.10+'s experimental Dialog API. It completely eliminates verbose Java Builder nesting, lifecycle boilerplate, and dangerous component override issues, giving you an extremely smooth, type-safe UI writing experience.

See the source code and examples in test package for more help. I don't like write README, anyway.

Comparison

Writing a dialog with an input field using the native Paper API looks like this:

Native approach:

val oldDialog = Dialog.create { dialogBuilder ->
    dialogBuilder.empty()
        .base(
            DialogBase.builder(mm.deserialize("Title"))
                .canCloseWithEscape(true)
                .inputs(
                    listOf(
                        DialogInput.numberRange(
                            "test2",
                            mm.deserialize("<aqua>输入数字"),
                            0f,
                            100f
                        )
                            .initial(0f)
                            .build(),
                        DialogInput.bool(
                            "test",
                            mm.deserialize("勾选<sprite:blocks:block/stone>")
                        ).build(),

                        DialogInput.text(
                            "test3",
                            mm.deserialize("<sprite:\"minecraft:items\":item/porkchop>请输入文本")
                        ).build()
                    )
                )
                .build()
        )
        .type(
            DialogType.notice(
                ActionButton.create(
                    mm.deserialize("1 right"),
                    mm.deserialize("2 right"),
                    100,
                    DialogAction.customClick(
                        { view, audience ->
                            val test2 = view.getFloat("test2") ?: return@customClick
                            audience.sendMessage(mm.deserialize("test2: $test2"))
                        },
                        ClickCallback.Options.builder()
                            .uses(-1)
                            .lifetime(Duration.ofMinutes(5))
                            .build()
                    )
                )
            )
        )
}

Using this DSL:

val newDialog = DialogSetup {
    DialogContent(mm.deserialize("Title")) {
        canCloseWithEscape(true)
        NumRangeInput("test2", mm.deserialize("<aqua>输入数字"), 0f to 100f, 0f, 1.0f, 300)
        BoolInput("test", mm.deserialize("勾选<sprite:blocks:block/stone>"))
        TextInput("test3", mm.deserialize("<sprite:\"minecraft:items\":item/porkchop>请输入文本"))
    }
    DialogType(UIType.NOTICE) {
        Button(
            mm.deserialize("1 right"),
            mm.deserialize("2 right"),
            100,
            -1,
            Duration.ofMinutes(5)
        ) { view, audience ->
            val test2 = view.getFloat("test2") ?: return@Button
            audience.sendMessage(mm.deserialize("test2: $test2"))
        }
    }
}

Import

build.gradle.kts:

repositories {
	mavenCentral()
	maven { url = uri("https://jitpack.io") }
}

dependencies {
	implementation("com.github.Axiumyuyu:PaperDialogDSL:Tag")
}

Quick Start

1. Create the main UI

Use the DialogSetup { ... } block to declare a static registry dialog. The framework splits the UI into two areas: DialogContent (display & input area) and DialogType (bottom button routing area).

val MainMenuUI = DialogSetup {

    // 【Upper area: display & input】
    DialogContent(text("服务器主菜单")) {
        // Directly call native methods (Escape Hatch)
        canCloseWithEscape(true)

        // Render text and items
        Text(text("欢迎来到服务器！请填写或选择以下操作："))
        ItemDisplay(ItemType.DIAMOND.createItemStack())

        // Render interactive input components (automatically stacked below the display content)
        TextInput("player_name", text("你的昵称"))
        BoolInput("agree_rules", text("同意服务器规则"))
        NumRangeInput("age", text("你的年龄"), 1f to 100f)
    }

    // 【Lower area: action routing】
    DialogType(UIType.MULTI_ACTION, columns = 2) {
        // Standalone exit button
        ExitButton(text("关闭"), text("点击退出"), 100)

        // Regular callback button
        Button(text("提交"), text("保存数据"), 100) { view, audience ->
            val name = view.getText("player_name")
            val agree = view.getBoolean("agree_rules")
            audience.sendMessage(text("收到提交：$name, 同意规则：$agree"))
        }
    }
}

2. Registration

In your PluginBootstrap, use the provided registerDialog extension function to compress the verbose 5‑layer generic parameters into a single line:

class MyPluginBootstrap : PluginBootstrap {
    override fun bootstrap(context: BootstrapContext) {
        val manager = context.lifecycleManager
        manager.registerDialog(NamespacedKey("playertd","test"), newDialog)
    }
}

3. Runtime Dialogs

Due to a Paper bug (Issue #13555), ItemDisplay cannot be used at the Bootstrap stage. If you must use it, you cannot register at Bootstrap and must use runtime dialogs.

// In a command executor or event listener:
val dynamicUI = MainMenuUI.build()

player.showDialog(dynamicUI)

Supported Dialog Types

The DSL supports all native Paper dialog layouts:

• UIType.NOTICE: Pure display, allows 0 or 1 button.
• UIType.CONFIRMATION: Two‑choice, strictly requires exactly 2 buttons.
• UIType.MULTI_ACTION: Supports unlimited buttons, with a columns parameter for grid layout.
• UIType.DIALOG_LIST: Pass a RegistrySet<Dialog> to display a list of sub‑dialogs.
• UIType.SERVER_LINKS: Display external links configured on the server.

Route System

A declarative routing solution for multi-page dialog scenarios, providing navigation stack management and lifecycle safety.

Core Interfaces

Quick Start

// Open a root menu from a command or event
DialogRouter.openRoot(player, MainMenu)

// In-page navigation
context.navigate(SomeRoute)           // Push navigation (keep history)
context.replace(state.copy(x = v))    // Replace current page (update state & re-render)
context.goBack()                      // Go back to previous page
context.abortTransaction()            // Abort transaction (auto-triggers onRollback)

Create a main menu quickly with AutoRootSetup:

object MainMenu : RootRoute {
    override fun render(context: DialogRouteContext) =
        AutoRootSetup(context, mm.deserialize("Main Menu")) {
            "Entity List" to ListRoute
            "Edit" to EditRoute("uuid-1234", "Pig")
            "Settings" to SettingsRoute()
        }
}

Lifecycle Protection

RouteCleanUp automatically listens for player disconnect/death events. If the current page is an AtomicRoute, it triggers onRollback and cleans up the route stack to prevent transaction leaks.

See src/main/.../test/RouteTest.kt and RouteTest2.kt for complete examples.

License

This project is licensed under the MIT License.
